SignalScope XM is Faber Acoustical's dynamic signal analysis, data acquisition, and acoustics app for Mac. The culmination of over 20 years of development experience on Apple platforms, SignalScope XM offers basic, advanced, and professional tool sets to meet your analysis and measurement needs in acoustics, audio, and electroacoustics. Download SignalScope XM for free, today, and try out the full suite of tools and features free for 14 days.
SignalScope XM requires at least macOS 11 and runs beautifully on Mac with Intel or Apple silicon hardware.
If you need to run SignalScope on your iPhone or iPad, take a look at SignalScope X. SignalScope X offers the same tool sets and features as SignalScope XM on macOS and similar tools and features on iOS and iPadOS—all via cross-platform subscriptions. A single subscription purchase unlocks selected tools and features on all platforms. SignalScope X is available via a free download on the Mac, iPhone, and iPad App Stores.
Licenses available for purchase within SignalScope X or from an authorized reseller:
Perpetual License
$59
Perpetual License
$199
Perpetual License
$599
Note: SignalScope XM licenses can be purchased directly within the app, itself, although this is currently limited to customers in the U.S. All customers are welcome to purchase SignalScope XM licenses from any of our authorized resellers.
Features
Standard Features:
Pro Features:
- Multi-channel, real-time analysis of signals coming from the Mac’s audio interface hardware
- Multi-channel, real-time analysis of AIF, CAF, or WAV audio files
- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
- Assign input channel units and sensitivities for individual USB Audio devices.
- Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.
- SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.
- Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).
- Manually switch between available audio input and output sources.
- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
- Manually adjust audio sample rates, even up to 768 kHz, depending on input hardware.
- Save acquired measurement data to CSV, tab-delimited ASCII text, or MAT files.
- Save time domain data to AIF, CAF, or WAV audio files.
- Save high-resolution analyzer display images to PDF files.
- Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device. Files may also be opened in other compatible apps (e.g. Mail, Notes, Numbers, Dropbox, etc).
Pro Features:
- User-defined custom metadata in saved audio and data files
- Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
- Percentile exceeded sound levels in the Level Meter and Octave Analyzer
- NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
- Voltage decibel levels can be displayed in dBV or dBu
- Load data from multiple data files to generate average curves in the FFT, Octave, and Dual FFT tools.
Tools
Professional Tools
Specifications
Input/Output
- Supported Hardware: Any Core Audio compatible device, includes USB Audio Class compliant devices connected to Mac, iPad, or iPhone via a suitable USB adapter
- Input Device
- Maximum Supported Input Channels: 32
- Maximum Supported Sample Rate: 768 kHz
- Supported Units: Digital Full Scale (FS), Volts (V), and pascals (Pa, only when a known microphone device is selected—units are then synchronized with the first input channel)
- Built-in Accelerometer: iPad, iPhone only
- Enhanced Third Party Hardware Support
- Digiducer: USB Digital Accelerometers
- Data Read from Device:
- Serial Number
- Calibrated Accelerometer Sensitivity
- Calibration Date (year, month, day)
- Automatic Sensitivity Adjustment, Based on Sample Rate
- The Modal Shop: 485B39 2-channel ICP-USB Signal Conditioner
- Data Read from Device:
- Serial Number
- Calibrated Voltage Sensitivity
- Calibration Date (year, month, day)
- Automatic Sensitivity Adjustment, Based on Sample Rate
- miniDSP: UMIK-1, UMIK-2
- User Prompted for Device Serial Number
- Data Downloaded from miniDSP.com:
- Acoustic Sensitivity
- Frequency Response Data
- miniDSP: EARS Headphone Test Fixture
- User Prompted for Device Serial Number
- Data Downloaded from miniDSP.com:
- Acoustic Sensitivity
- Frequency Response Data
- HEQ: headphone compensation for flat EQ target
- HPN: original headphone compensation
- IDF: IEM diffuse field compensation
- RAW: no headphone compensation (mic cal only)
- Data Read from Device:
- Hardware Gain Setting
- Dayton Audio: UMM-6 USB Measurement Microphone
- User Prompted for Device Serial Number
- Data Downloaded from daytonaudio.com:
- Acoustic Sensitivity
- Frequency Response Data
- Dayton Audio: iMM-6C iDevice USB-C Calibrated Microphone
- User Prompted for Device Serial Number
- Data Downloaded from daytonaudio.com:
- Acoustic Sensitivity
- Frequency Response Data
- Output Device
- Maximum Supported Output Channels: 32
- Maximum Supported Sample Rate: 768 kHz
- Input Channels
- Maximum Sample Resolution: 32 bits, data processed internally with single (32-bit) or double (64-bit) precision
- Supported Units per Channel: Digital Full Scale (FS), pascals (Pa), Volts (V), Amperes (A), Gravity (g, m/s^2), Force (lbf, N)
- Additional Units for Vibration: Velocity (ips, mm/s), Displacement (mils, mm), applied in tools that support integration of acceleration to velocity or velocity to displacement
- Sensitivity Calibration: Manual entry, automatic calculation from reference input level
- Frequency Response Compensation (FRC)
- Frequency Response Data (FRD) Source: URL, File
- FRD File Format: FRD (.frd, .txt, or .csv), or CSV/MAT/TXT files generated by FFT or Dual FFT Analyzer tools in SignalScope
- DC Offset Correction
- Apply DC Blocking Filter: Enable/Disable
- DC Correction: User-defined DC correction value
- The blocking filter and correction options are mutually exclusive
- Output Channels
- Maximum Sample Resolution: 32 bits, data processed internally with single (32-bit) or double (64-bit) precision
- Supported Units per Channel: Digital Full Scale (FS), pascals (Pa), Volts (V), Amperes (A), Gravity (g, m/s^2), Force (lbf, N)
- Sensitivity Calibration: Manual entry, automatic calculation from reference input level
- Audio Play-through: Enable/Disable (requires the same device to be selected for input and output on Mac)
- At Launch:
- Restore Hardware Sample Rate: Enable/Disable
- Restore Hardware Output Gain: Enable/Disable

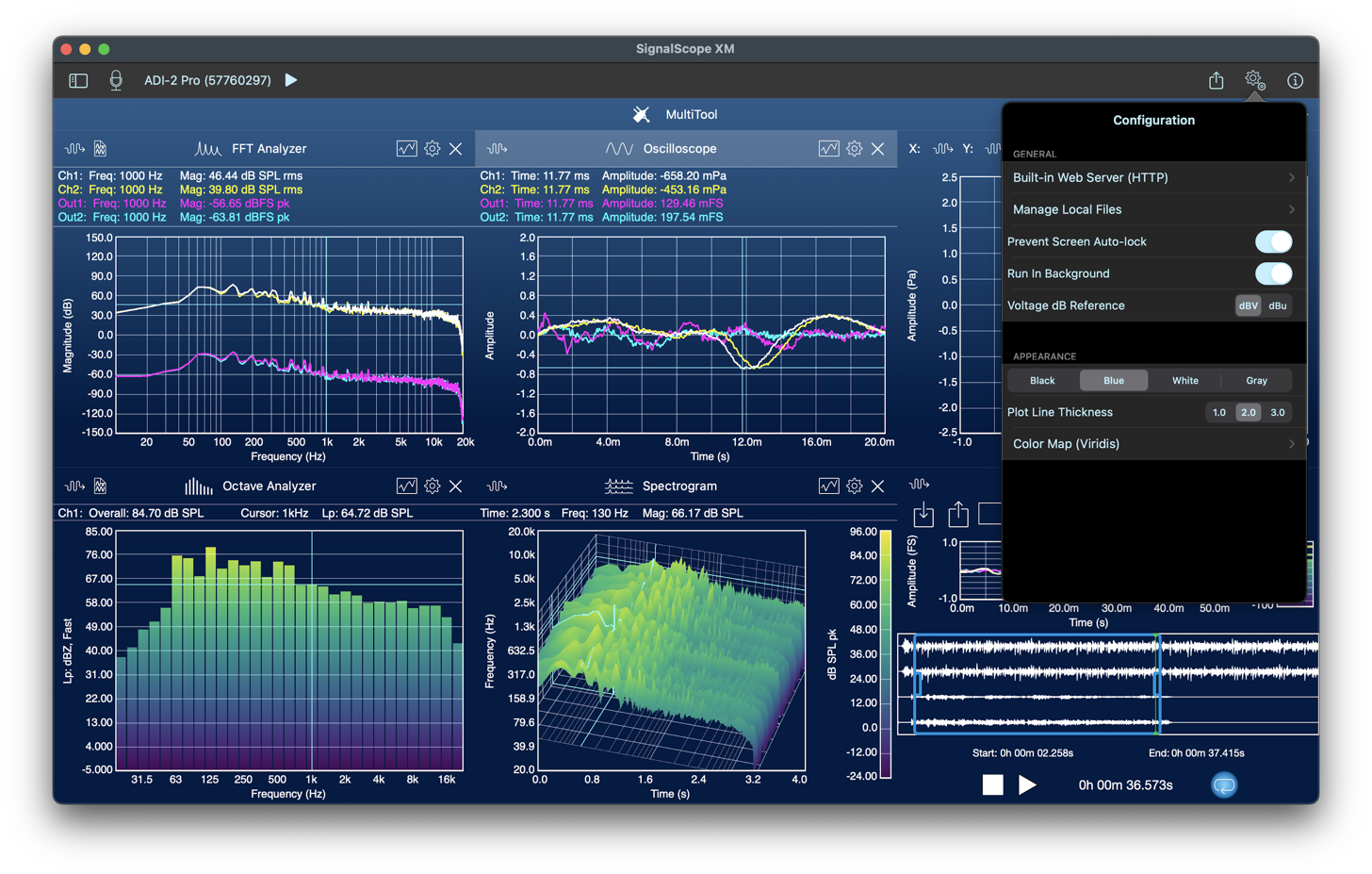

- Built-in Web Server (HTTP)
- Run Server: Enable/Disable (disabled by default)
- Preferred Server Port: User defined
- File Management: Built-in browser for files saved within the app's sandbox documents directory
- Supported operations (context-dependent): Delete, Load, Preview, Export, Show in Finder (Mac only)
- Prevent Screen Auto-lock: Enable/Disable
- Run In Background: Enable/Disable
- Voltage dB Reference (Pro Feature): dBV, dBu

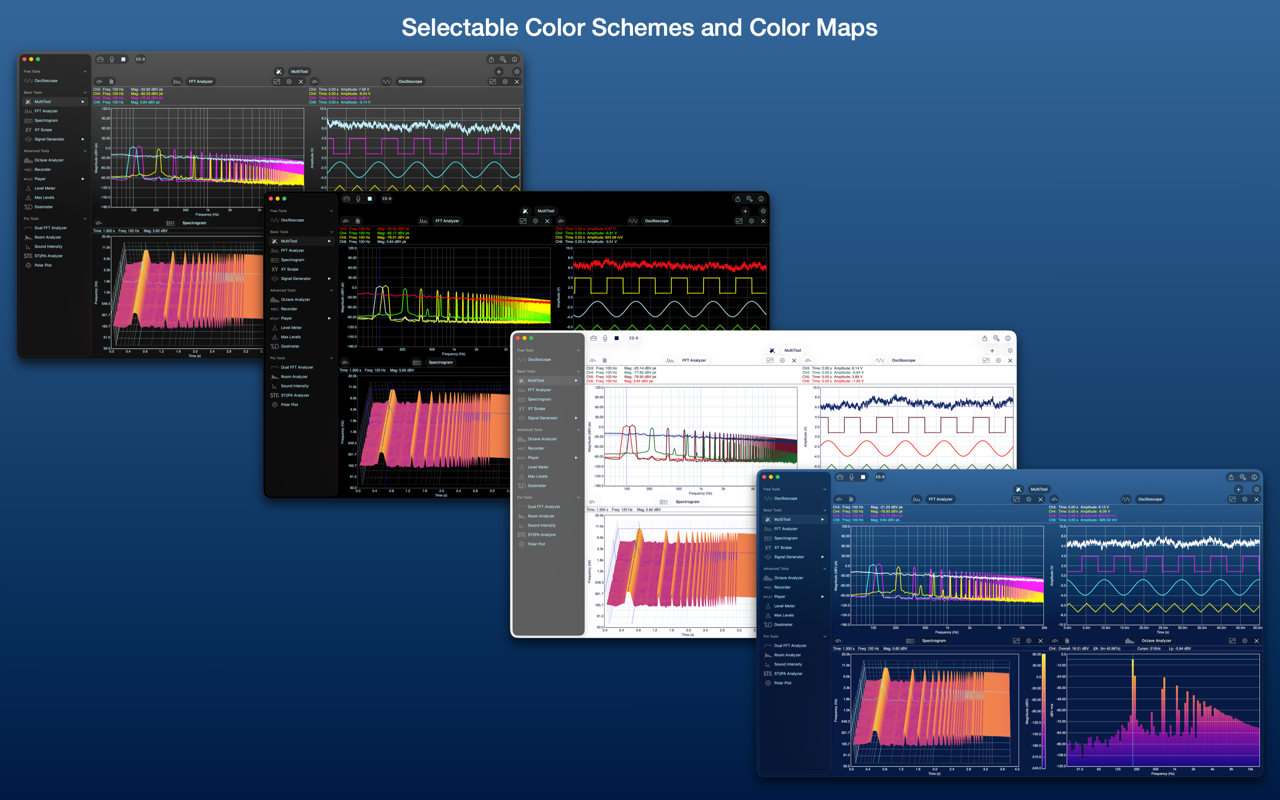

- Color Schemes (background color): Black, Blue, White, Gray
- Plot Line Thickness: 1.0, 2.0, 3.0
- Color Map (for bar or surface graphs): Classic, Inferno, Magma, Plasma, Viridis, White on Black, Black on White, Green on White, Green on Blue
- Oscilloscope Specifications
- FFT Analyzer Specifications
- Spectrogram Specifications
- XY Scope Specifications
- Stereo Signal Generator Specifications
- Octave Analyzer Specifications
- Spectrogram Specifications
- Level Meter Specifications
- Max Levels Specifications
- Noise Dosimeter Specifications
- Data Recorder Specifications
- File Player Specifications

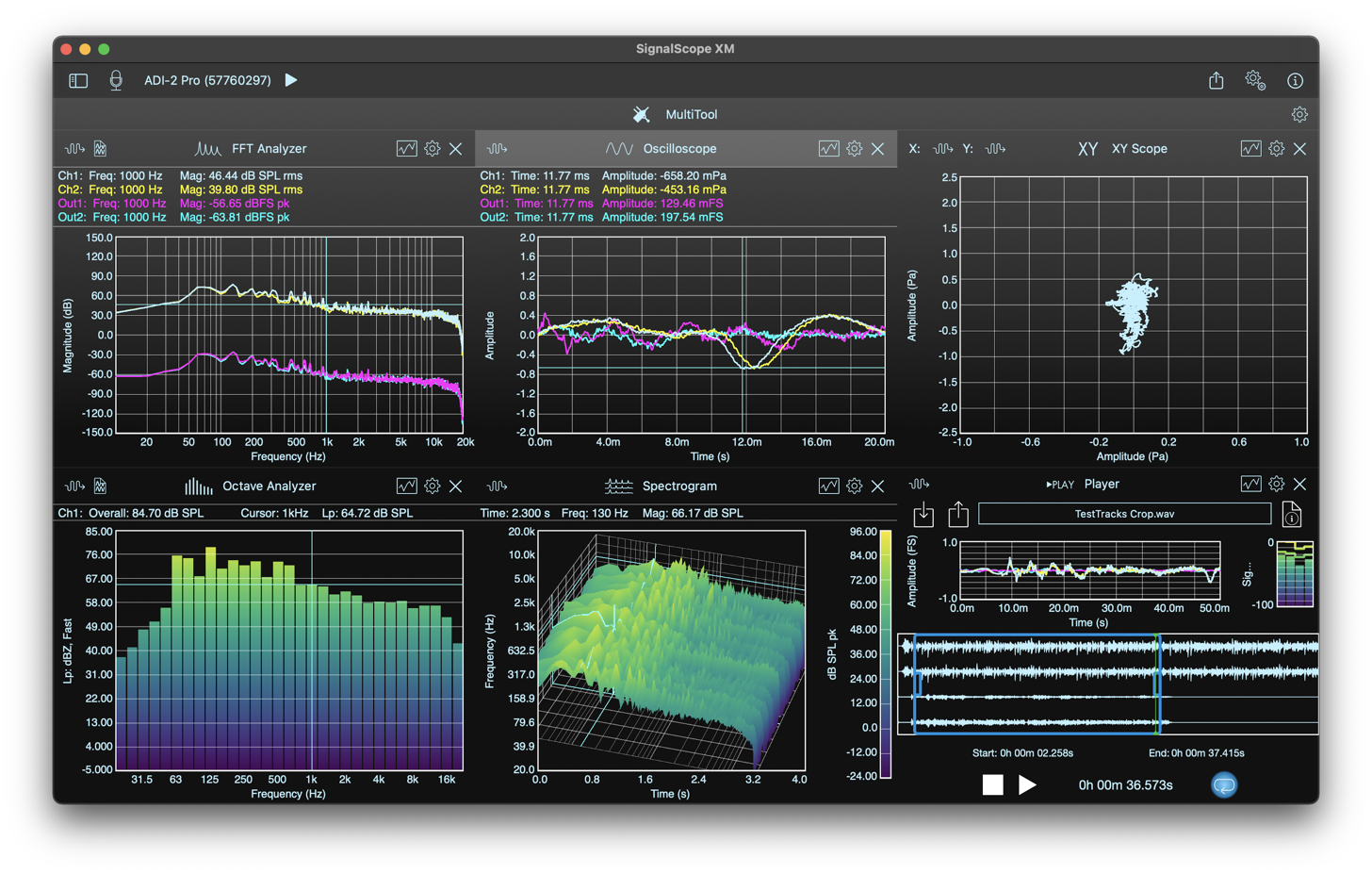

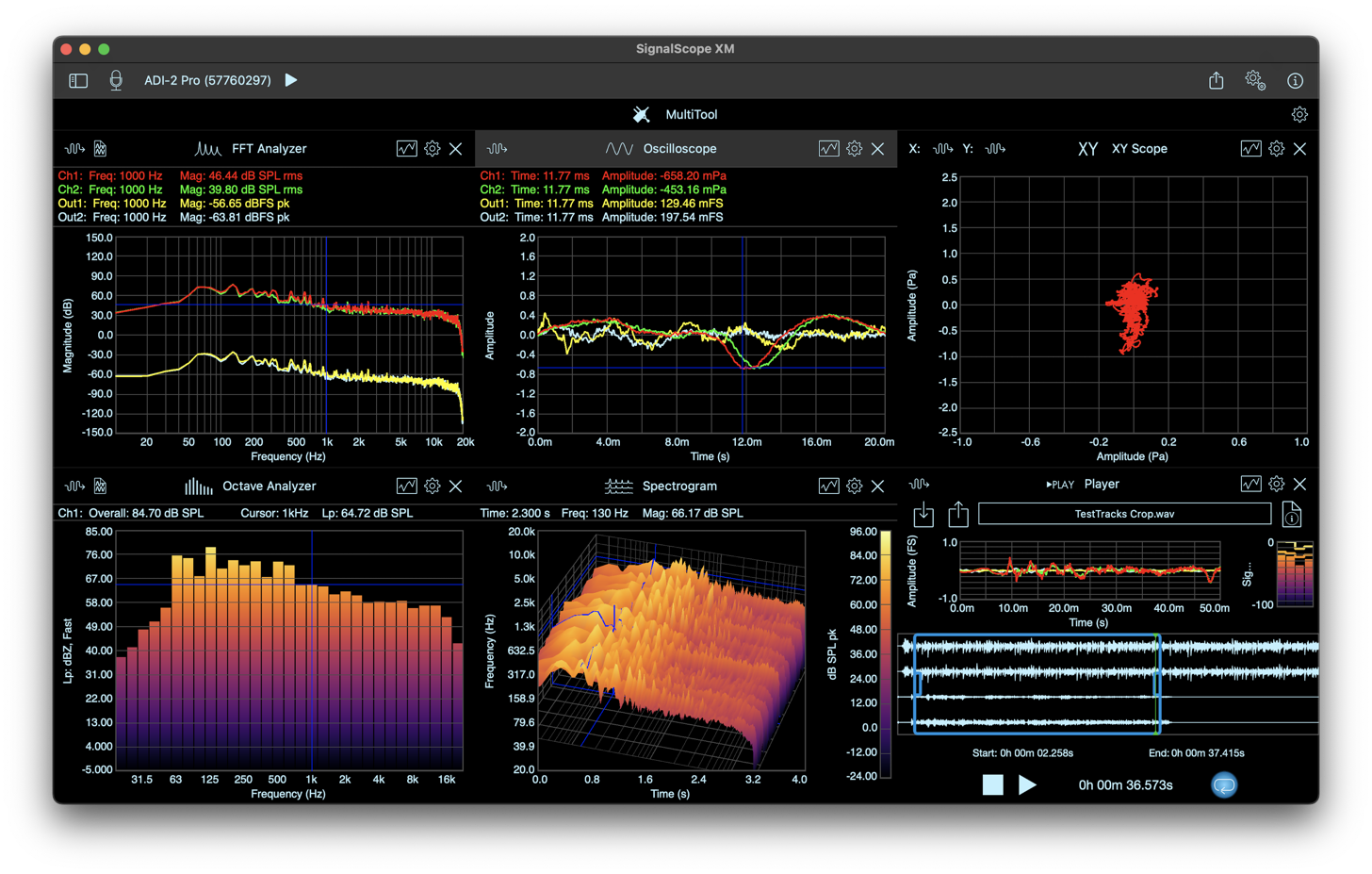

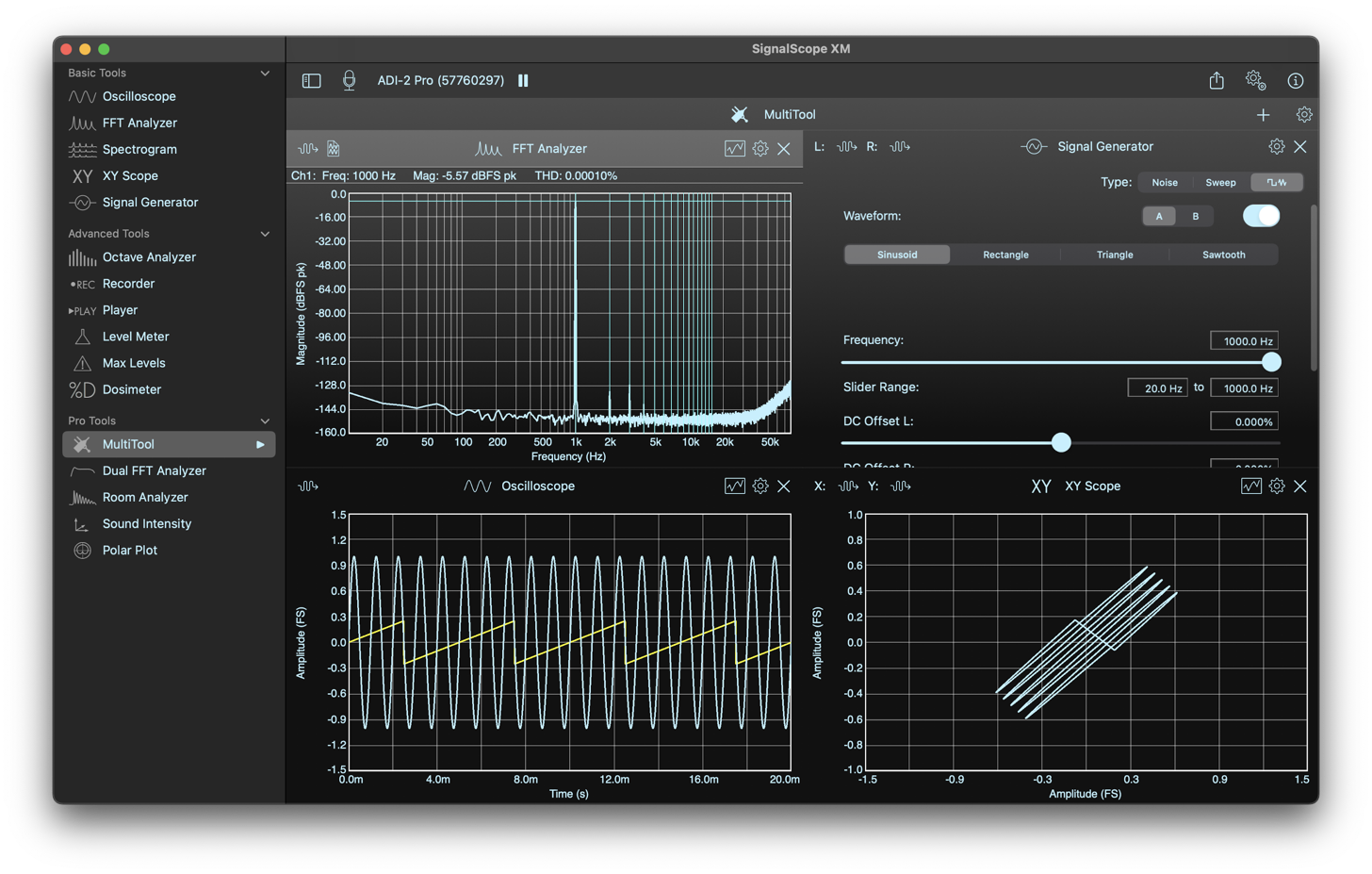

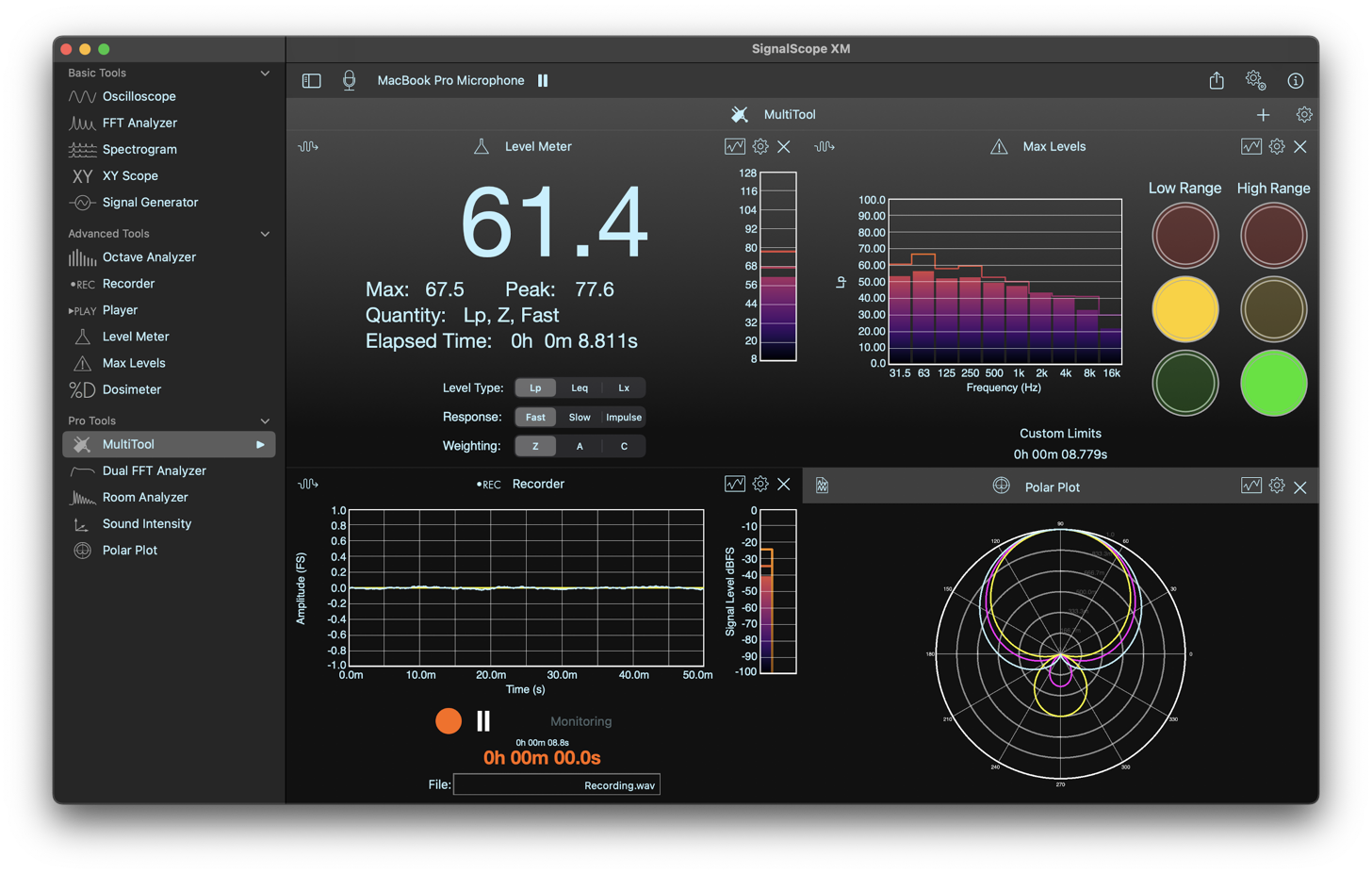

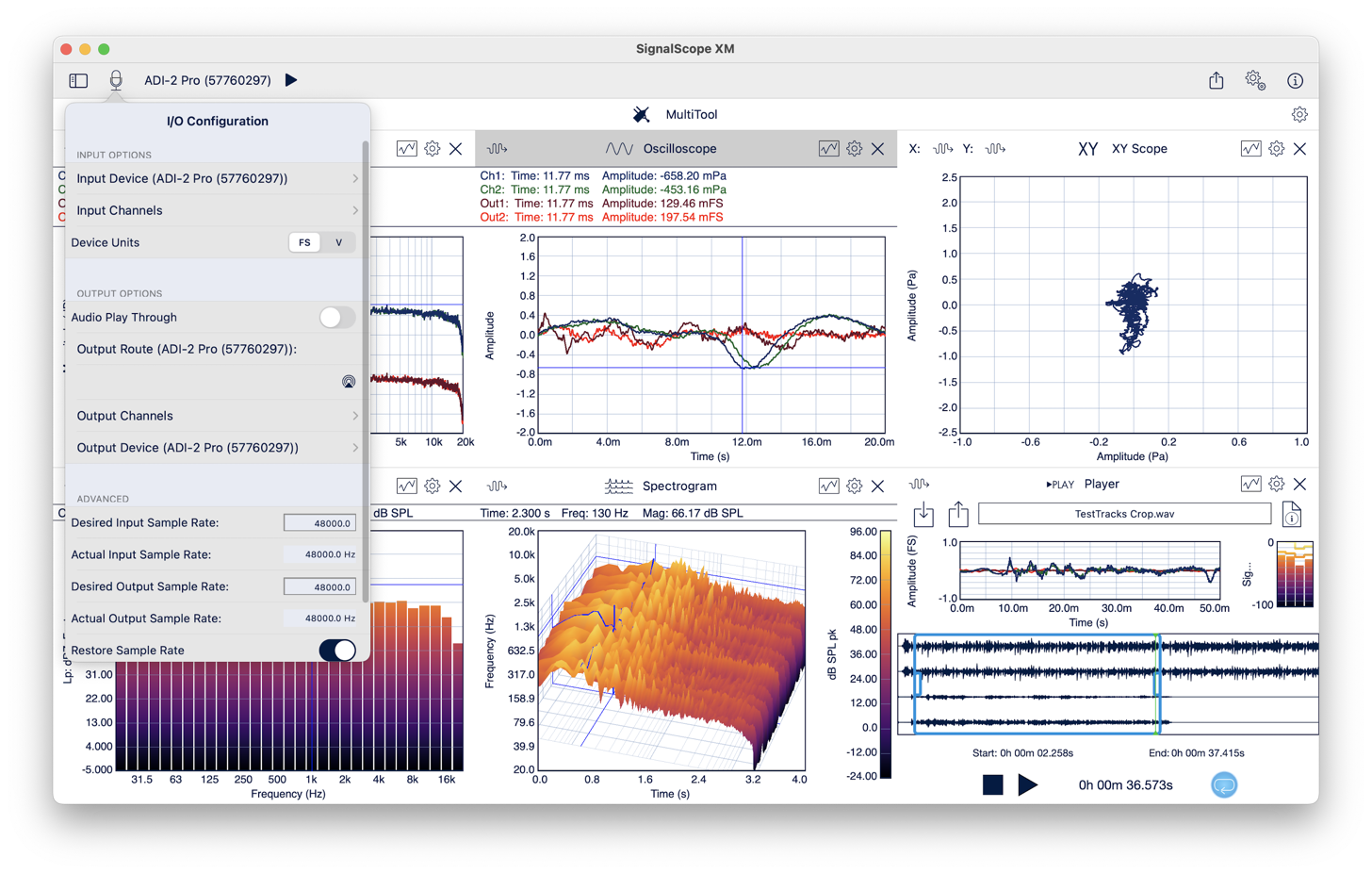

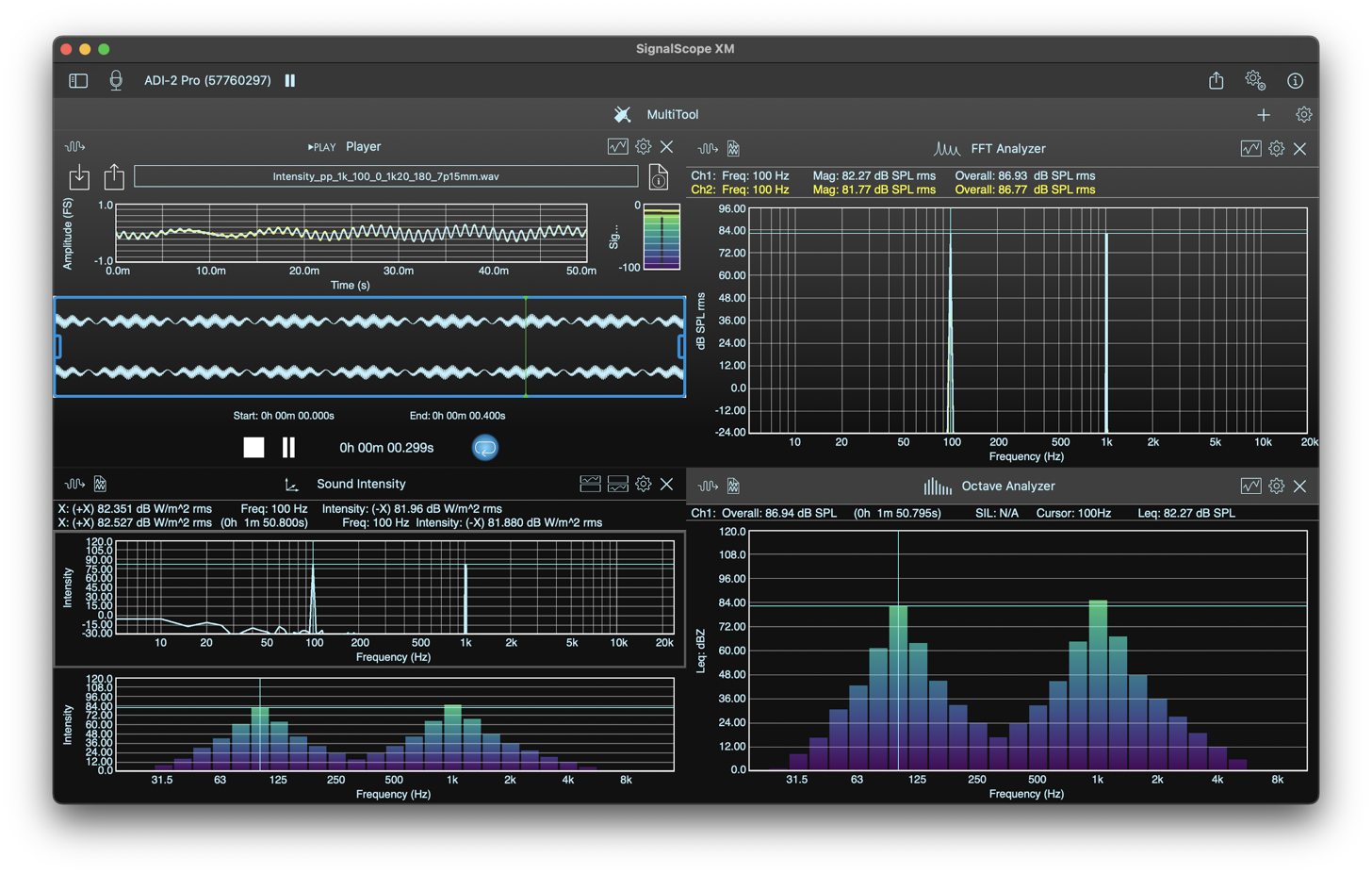

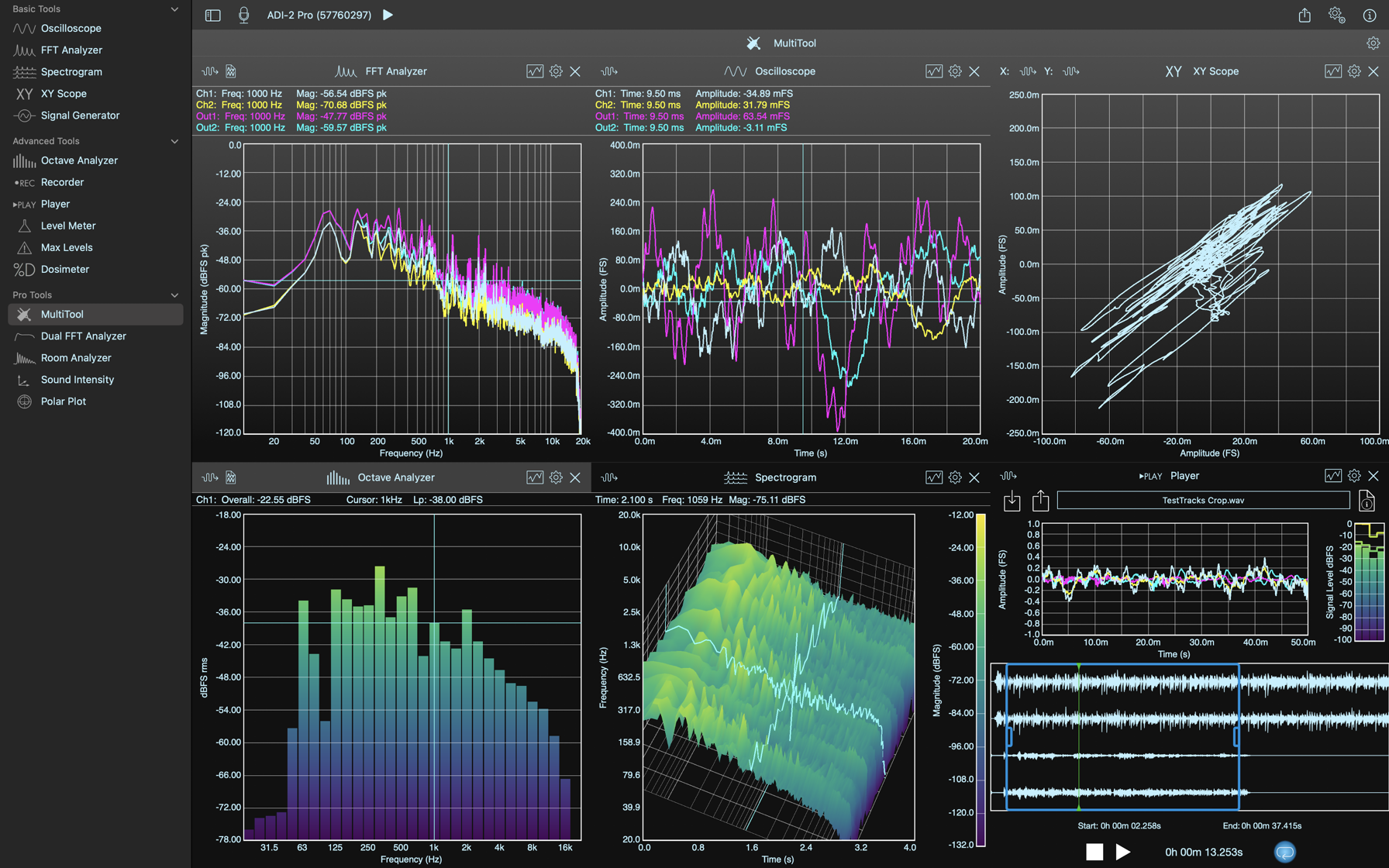

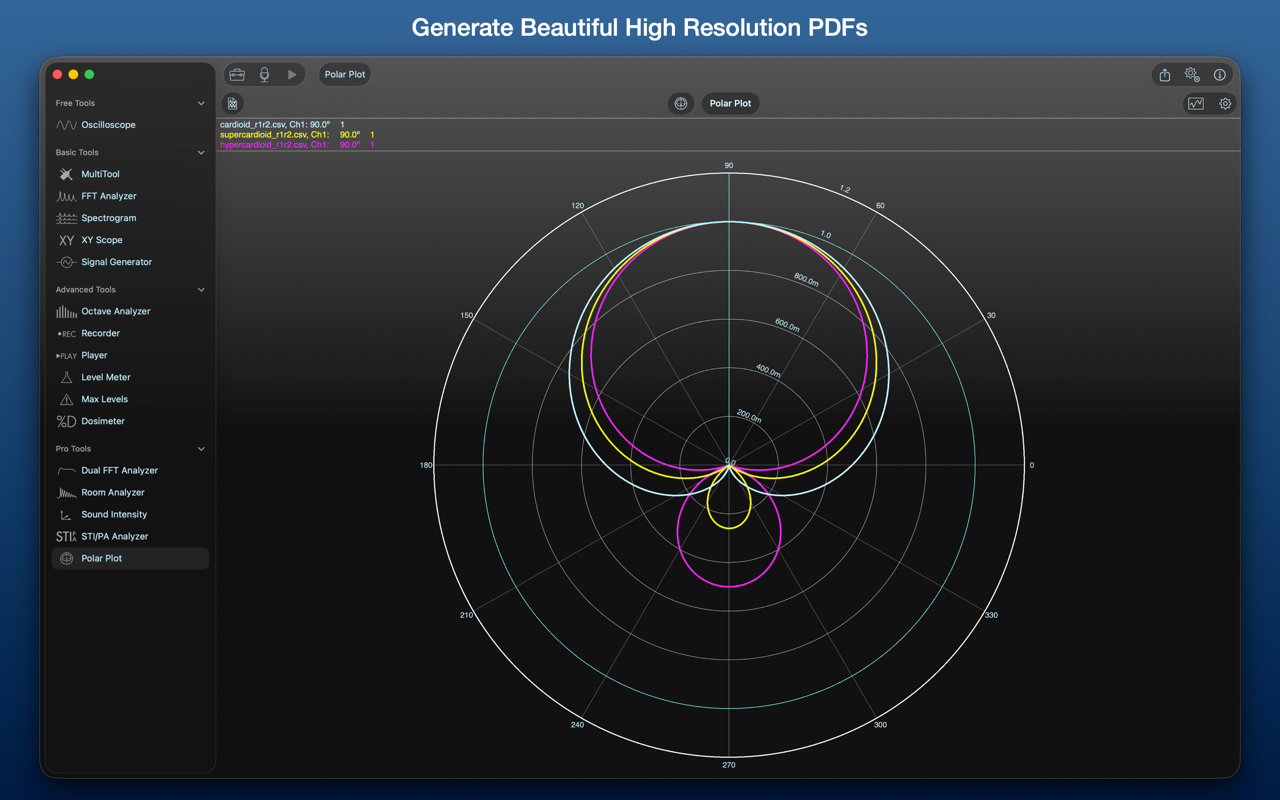

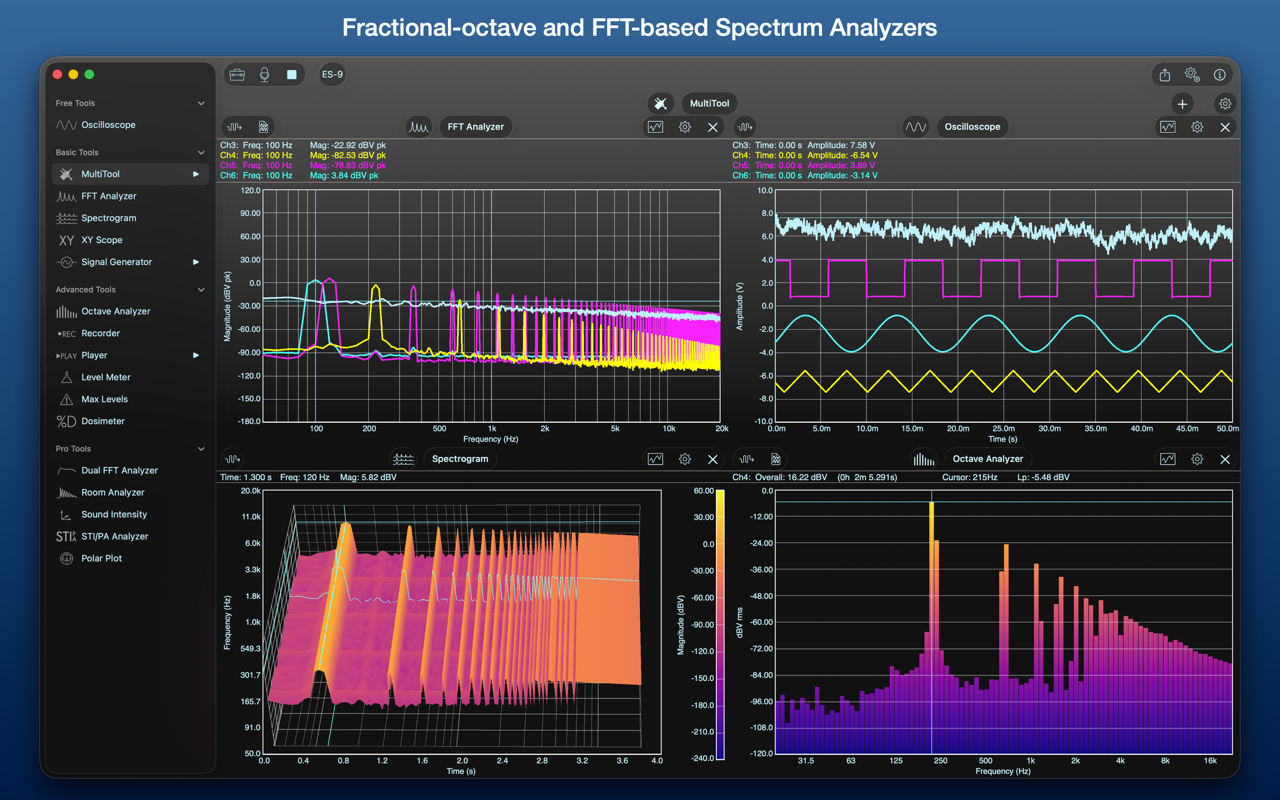

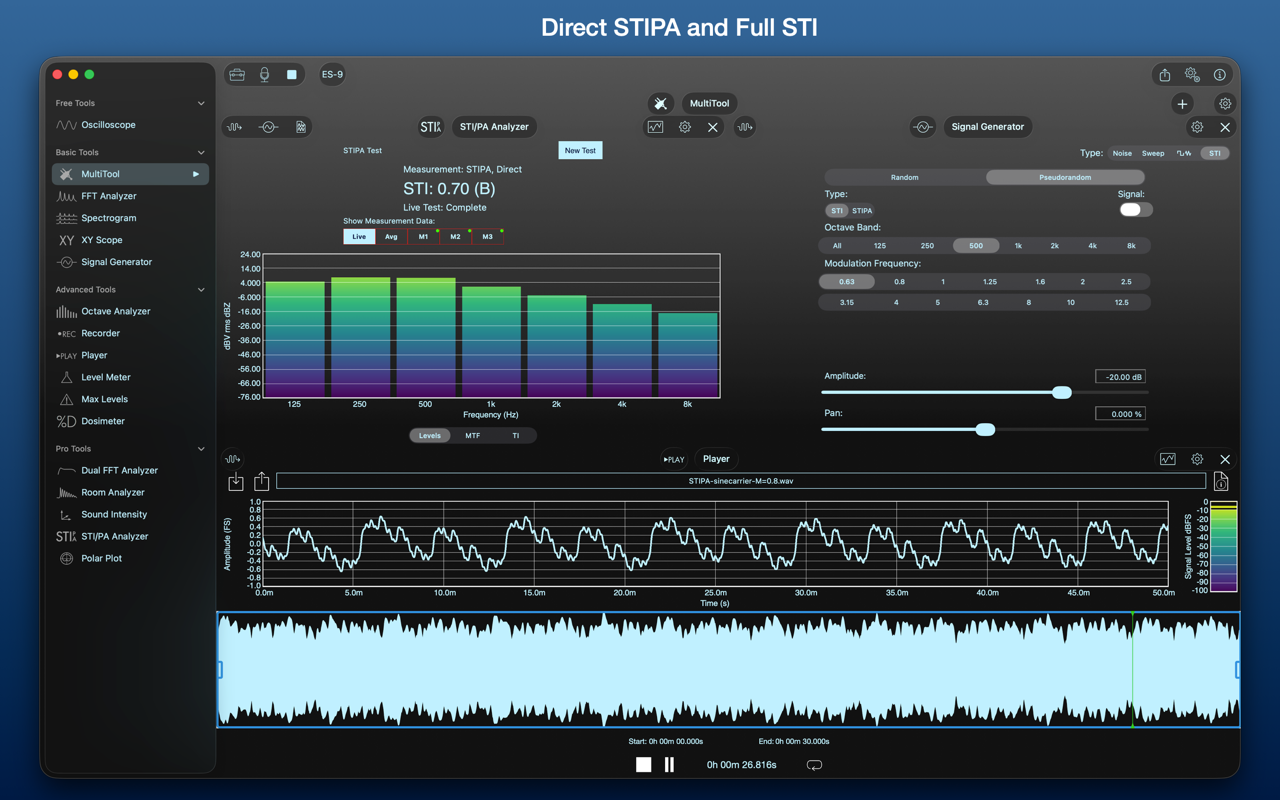

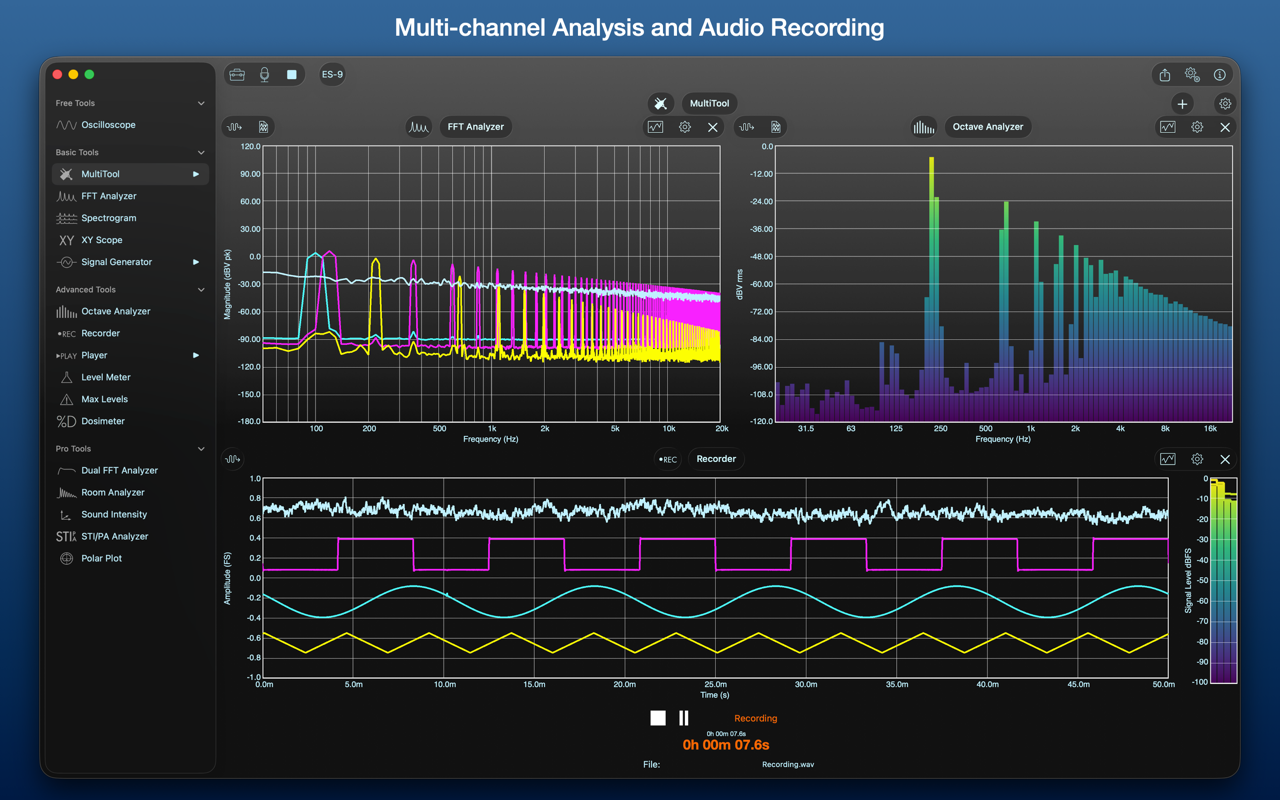

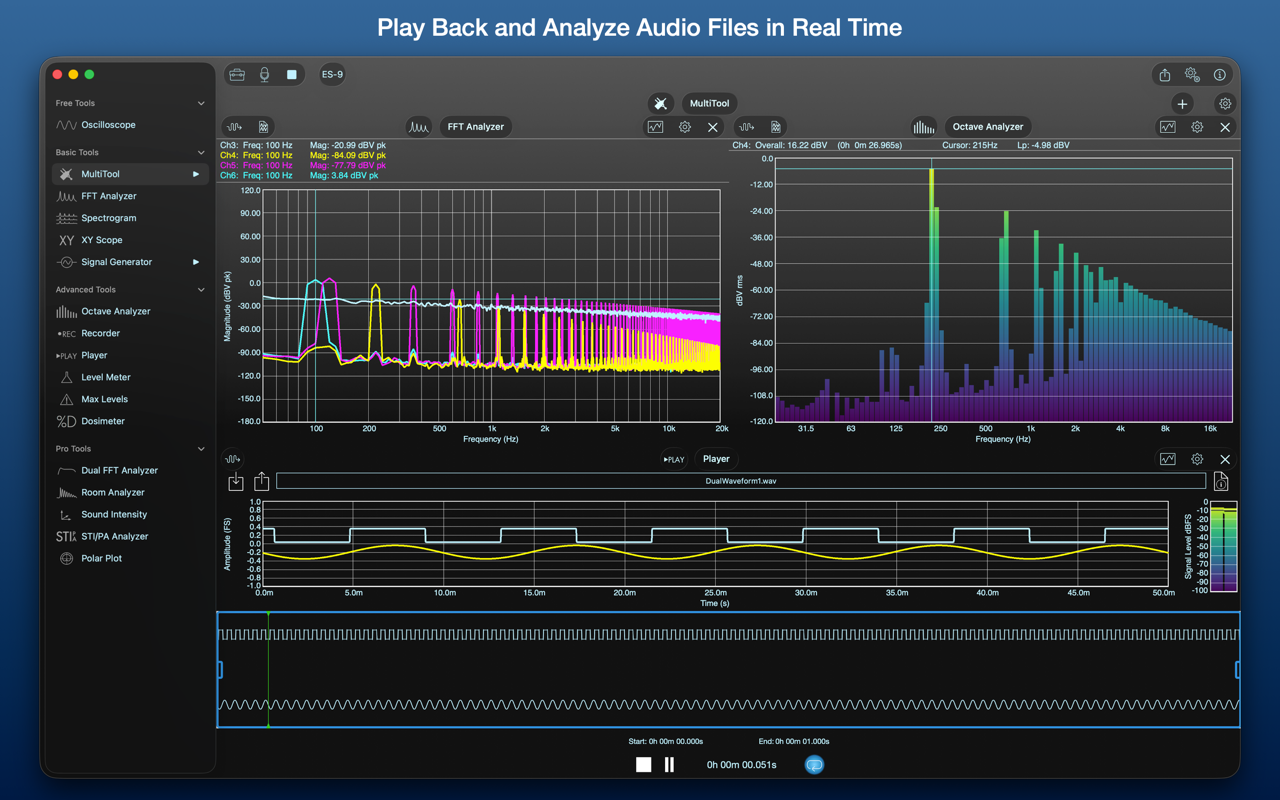

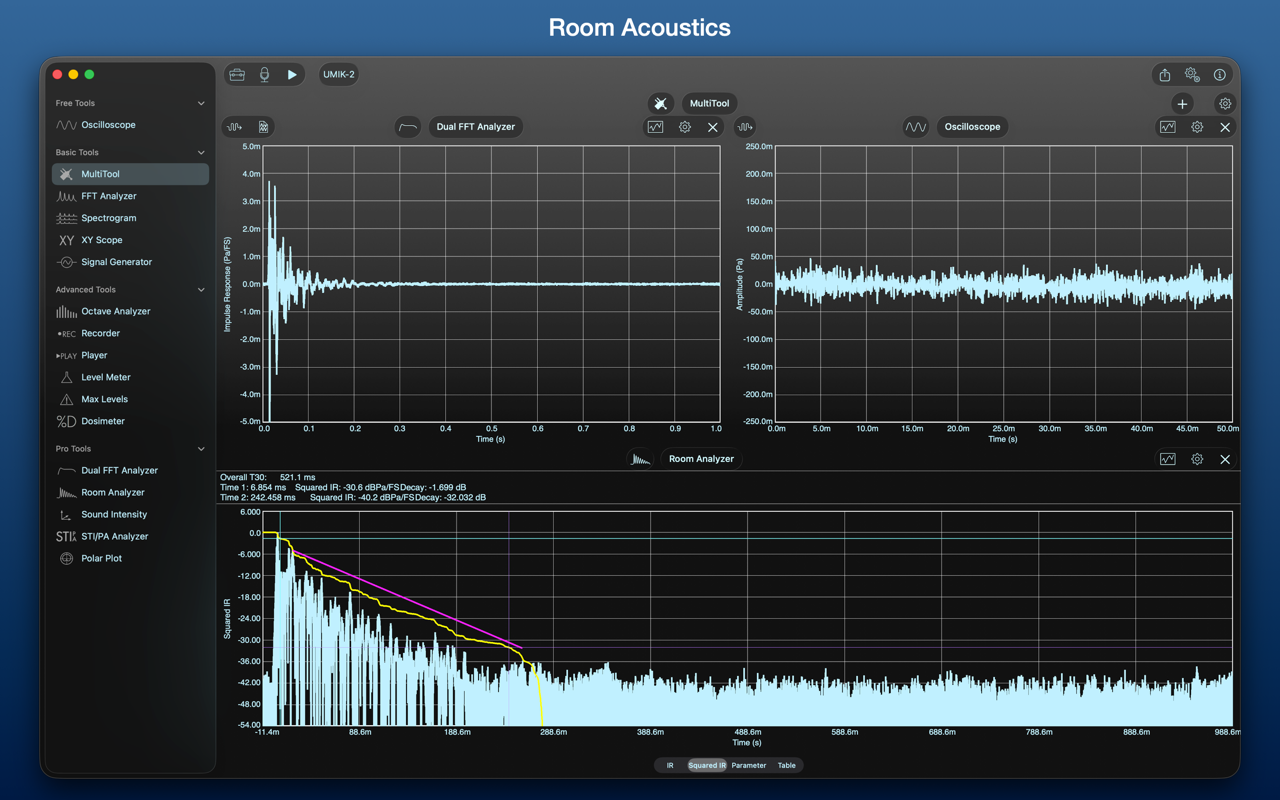

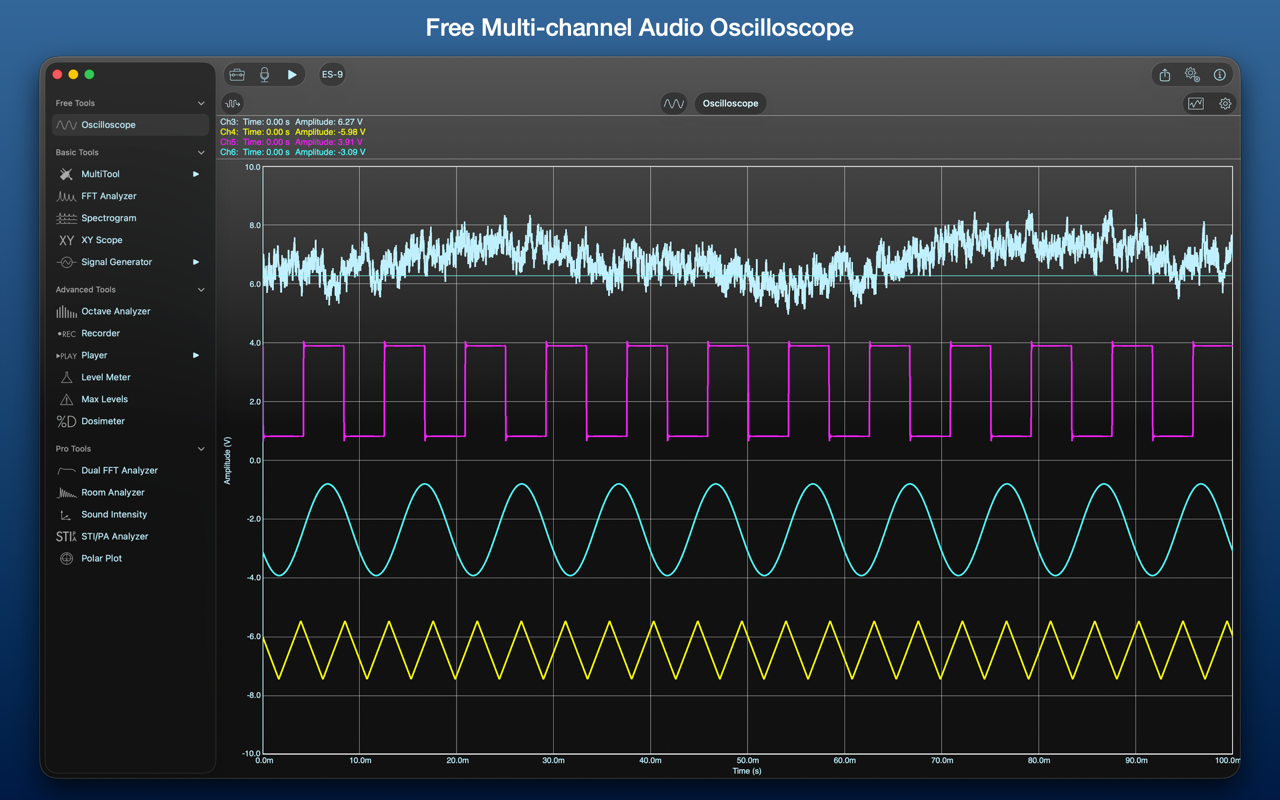

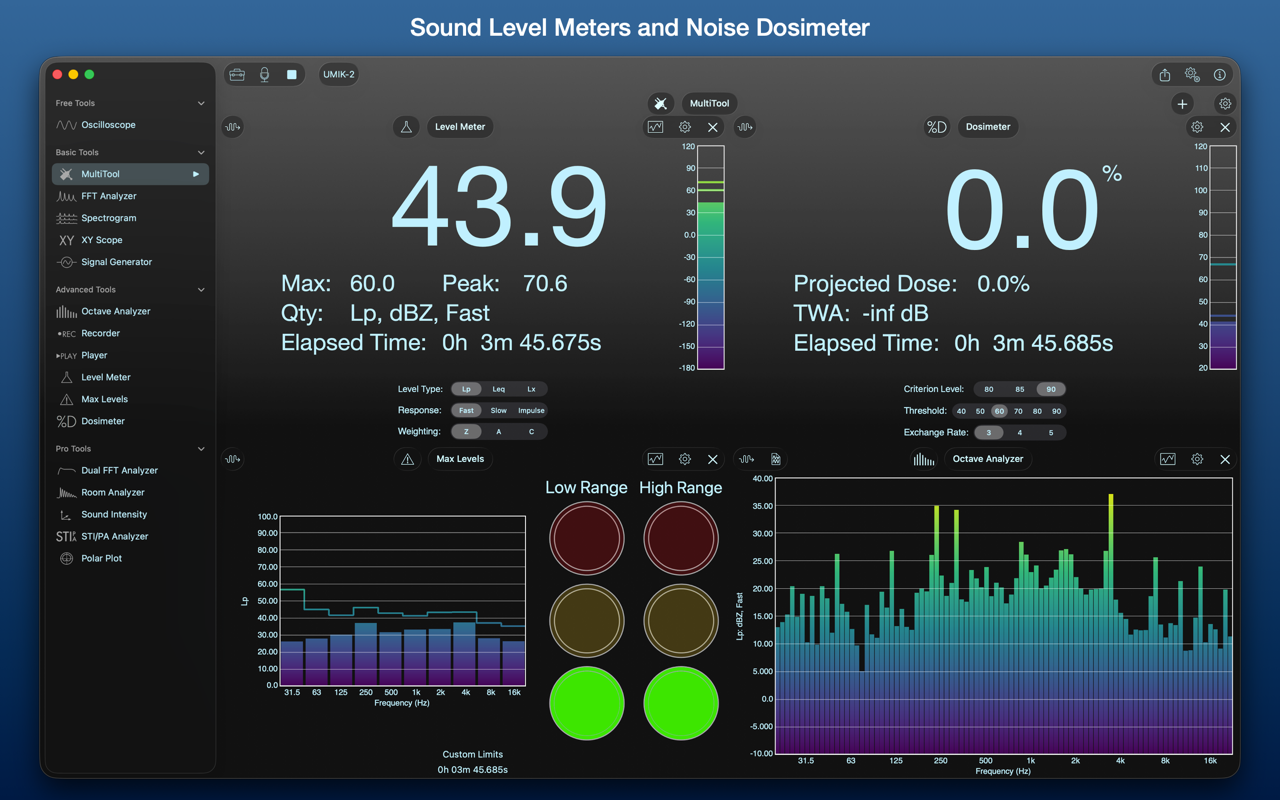

Screenshots
